The truck is due for its CVIP tomorrow. It’s been working every day, nobody has reported a major breakdown and the unit seems to be running fine.
Then the inspection finds a brake issue, a damaged suspension component and two trailer lights that only work when the wiring sits just right.
Now the truck is off the schedule and repairs need to be approved.
A failed CVIP does not always mean a truck or trailer has one major, obvious problem. Units may not pass because of worn brakes, damaged tires, loose suspension components, steering issues, lighting defects, air-system leaks, coupling concerns or several smaller defects found during the same inspection.
The exact result depends on the vehicle, its systems and the criteria in Alberta’s Commercial Vehicle Inspection Manual. Licensed technicians are required to inspect commercial vehicles using the manual that applies to the unit, and that manual sets the pass-or-fail criteria.
This article focuses mainly on medium- and heavy-duty trucks and trailers. Air-brake tractors, hydraulic-brake trucks and commercial trailers do not all have the same components, so the inspection points and required repairs can vary.
What Does a Failed CVIP Mean?
A failed CVIP means the vehicle did not meet one or more of the applicable inspection requirements at the time it was inspected.
The technician documents the defects that were found. Those items need to be addressed before the unit can receive a passing inspection result and be deemed road-worthy for Alberta’s highways.
Some failed inspection repairs are fairly contained. A damaged light, worn component or air leak may have a clear repair path.
Other inspections uncover related problems. A worn suspension part may have contributed to uneven tire wear. A leaking wheel seal may have contaminated a brake component. Loose wiring may have caused several lights to work intermittently.
That’s where a repair can grow beyond the first item on the report.
Alberta requires commercial vehicles covered by the program to have a valid inspection certificate and decal, and the registered owner is responsible for making sure the required inspection is completed.
Brake Defects That May Lead to a Failed CVIP
Commercial brake systems rely on multiple components applying, releasing and working together correctly. The exact inspection criteria depend on whether the unit uses air brakes, hydraulic brakes or a trailer braking system.
Brake-related defects may include:
- Worn brake linings or pads
- Damaged drums or rotors
- Air-system leaks
- Damaged hoses or lines
- Components that do not apply or release correctly
- Parking-brake defects
- Oil or grease contamination
- Uneven braking between wheel positions
One defect can also cause damage elsewhere. For example, a leaking wheel seal may contaminate brake components, requiring both the leak and the affected brake parts to be addressed.
Drivers may notice pulling, warning lights, longer stopping distance or unusual noises before the inspection. These symptoms provide useful diagnostic context, but the inspection result depends on the applicable pass-or-fail criteria.
Tire, Wheel and Wheel-End Defects
A truck or trailer can appear to run normally while still having tire, wheel or wheel-end defects.
Inspection concerns may include:
- Tire damage
- Excessive or uneven tread wear
- Damaged wheels or rims
- Missing or damaged wheel hardware
- Signs of tire rubbing
- Wheel-end leaks
- Excessive bearing-related movement
- Heat caused by a brake or mechanical problem
Uneven wear may point to a related alignment, steering or suspension issue. Replacing the tire without correcting the cause can put the replacement into the same wear pattern.
Do not touch a wheel, hub or brake component that may be hot. If smoke, a burning smell or obvious heat is present, follow the fleet’s out-of-service and emergency procedures and arrange for the unit to be assessed safely.
Suspension and Steering Defects
Suspension and steering components help control vehicle movement, axle position, tire contact and handling under load.
Potential defects include:
- Broken, cracked or shifted springs
- Worn bushings
- Loose mounting hardware
- Damaged brackets or U-bolts
- Air-suspension leaks
- Damaged air springs
- Excessive movement
- Loose or worn steering components
- Bent, cracked or insecure parts
These problems may also contribute to uneven tire wear, wandering, leaning or changes in how the unit handles under load.
Edmonton potholes, freeze-thaw cycles, industrial roads and changing loads can expose worn components, but the inspection result depends on the condition of the part and the applicable criteria.

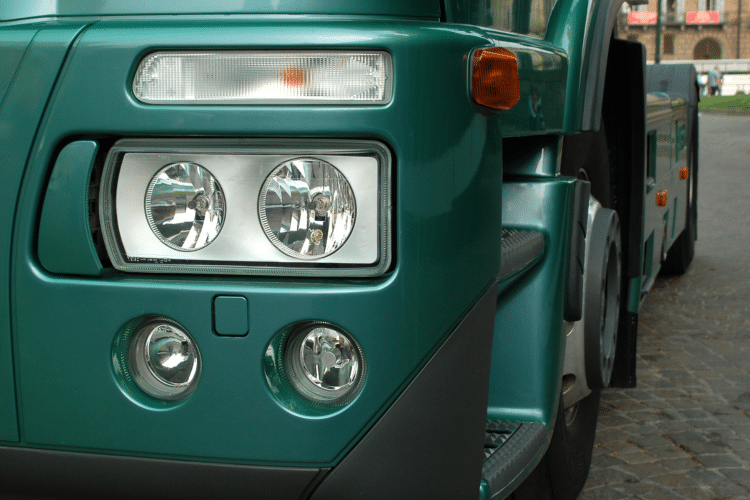

Lighting and Electrical Defects
Commercial vehicle lighting is part of the regulated safety equipment inspected during a CVIP.
Defects may involve:
- Headlights
- Brake lights
- Turn signals
- Clearance and marker lights
- Identification lights
- Licence-plate lighting
- Trailer wiring and connectors
- Reflectors and reflective material
- Electrical faults connected to inspected systems
The problem may be a burned-out bulb, damaged wiring, corrosion, a poor ground or an intermittent connection.
A light that works only when the plug or wiring is moved is not operating reliably. Photos or videos of an intermittent fault can be helpful when the problem does not appear at the shop.
Trailer Coupling and Structural Defects
A qualifying trailer requires its own inspection. The tractor’s certificate and decal do not cover the trailer attached to it.
Trailer inspection concerns may include:
- Damaged or excessively worn coupling components
- Loose or insecure mounting hardware
- Cracks around mounting areas
- Landing-gear defects
- Frame or structural damage
- Damaged air or electrical connections
- Doors, latches or equipment that do not secure properly
Trailers can be overlooked because they move among tractors, sit unused for part of the year or do not have one regular driver reporting changes. Each trailer should have its own maintenance and inspection records.
Air Leaks, Fluid Leaks and Exhaust Defects
Leaks may affect brake, suspension, steering, wheel-end, engine or exhaust systems.
The source and severity are not always obvious from a sound or stain. Inspection or diagnosis may be required to determine what is leaking, which components are affected and whether related damage is present.
Useful information includes:
- Where the leak appeared
- The approximate amount of fluid
- Whether it returned after cleaning
- When an air leak can be heard
- Whether system pressure behaves differently
- Whether an exhaust component appears loose or damaged
The source should be diagnosed before parts are replaced.
A CVIP May Identify Several Separate Defects
A truck or trailer does not need one major mechanical failure to receive an unsuccessful inspection result. One defect that does not meet the applicable criteria may be enough.
An inspection can also identify several separate problems. A marker light may be out, one tire may have uneven wear, a connection may be loose and an air-system leak may require diagnosis.
Together, those findings can create a longer repair list and more downtime, even when the vehicle appeared to operate normally before the appointment.
Report Known Problems Before the Inspection
If the fleet already knows that the unit pulls under braking, loses air while parked or has an intermittent trailer light, provide that information when booking.
Depending on the concern, rTech may recommend a preventive maintenance inspection, a separate repair appointment or completing the official CVIP first. The appropriate order depends on the vehicle and the reported symptoms.
For a detailed list of records, visible checks and booking information, read our guide on how to prepare a truck or trailer for a CVIP inspection.
What Happens After a Failed CVIP?
After an unsuccessful inspection, the customer should receive an explanation of the defects that were identified and the repairs required before the unit can pass.
The repair discussion should cover:
- Which items did not meet the inspection criteria
- What needs to be repaired or replaced
- Whether related damage was found
- Whether parts need to be ordered
- How the work may affect the return-to-service schedule
rTech HDR provides official CVIP inspections, preventive maintenance inspections and related truck and trailer repairs in Edmonton. The team can explain failed-inspection findings, provide detailed repair recommendations and keep fleet managers updated as approved work moves forward.
What to Provide When Booking Failed Inspection Repairs
If the vehicle failed at rTech, the shop will already have the inspection findings.
If the inspection was completed elsewhere, provide the full report when requesting repairs. Avoid reading only the first item over the phone. The complete document helps the shop understand the scope of the work.
Also have the following ready:
- Unit number
- Year, make and model
- Vehicle identification number
- Truck or trailer type
- CVIP expiry date
- Driver-reported symptoms
- Recent repair history
- The date the unit is needed back in service
- A contact who can approve additional work
Approval delays can keep a truck in the shop longer than the repair itself.
It happens.
Making sure the right person is available to review the estimate can prevent an avoidable delay.
Frequently Asked Questions
Can a truck fail a CVIP for one small problem?
A vehicle may not pass if a defect does not meet the applicable inspection criteria, even when the truck still appears to operate normally. The result depends on the specific defect, vehicle type and inspection requirements.
Can I repair a failed CVIP at a different shop?
The inspection report identifies the defects that need attention. Confirm the repair and reinspection process with the inspection facility before moving the unit, especially if its condition may make it unsafe to operate.
Does a failed CVIP mean the truck is unsafe to drive?
It depends on the defects found. Some issues may create an immediate safety concern, while others still need repair before the vehicle can pass. Ask the inspecting technician to explain the findings and whether the unit should be driven or transported.
How long do failed inspection repairs take?
Repair time depends on the number of defects, the parts required and whether related damage is found. Providing the complete inspection report and approving work promptly can help the shop plan the repair more efficiently.
Get Help With a Failed CVIP in Edmonton
A failed CVIP does not have to leave you guessing about what happens next.
Send rTech HDR the complete inspection report, along with the unit information, driver concerns and the date the truck or trailer is needed back in service. The team can review the findings, explain which repairs are required and identify any related damage that may affect the work.
rTech provides failed-CVIP repairs for commercial trucks and trailers in Edmonton, including brake, suspension, steering, chassis, lighting and electrical repairs.
Contact rTech HDR to review the inspection report and schedule the required work. Clear findings, timely repair approval and regular updates can help you make better decisions while the unit is out of service.
